Magnets Mini Silver Rare Earth Neodymium

Model NO.: N35 N38 N40 N42 N45 N48 N50 N52 N54
Coating Type: Zn, Cu, Au, Sliver, Epoxy, Ni-Cu-Ni
Work Temp: 80-220 Degree
Material: Rare Earth Permanent Magnet
Tolerance: +/-0.05mm
Delivery Time: Within 3-30 Working Days
Size: From 0.1mm to 200mm, Depend on Detail Dimension
Package: Boxes, Cartons as Demands
Max Working Temp: 80-230
Trademark: GXL
Transport Package: as Demands
Specification: 7.5g/cm3
Origin: China
HS Code: 85051110

Magnets Mini Silver Rare Earth Neodymium
We have the fixed Long-term cooperation factory. Which is mainly produce kinds magnet. We have invested much funds for some equipment, for example injection molding machine.
And Our technology is introduced from Japan and Germany. The major technical leader in our factory is from Japan and has been studying this field for over 15 years.   Wish our best technology can solve your production problems.

A. Product Detail
Magnets Mini Silver Rare Earth Neodymium

Material  Neodymium  Iron, Boron
Grades -Range: N35-N54; N35M-N52M; N35H-N50H, N30SH-N50SH; N30UH-N45UH,N28EH-N40EH
-The grade like N48-N52 could meet your requirements on strong power
-Standard one like N35 or N40 is okay for your normal applications
Orientation Through the direction of thickness or according to your needs
Size : From  0.1mm to 200mm, Length x Width x Thickness     Depend on detail dimension
Shape: Others available: Block, Ring, Cylinder, Disc, Customized shape as your design
Coating: Others available: Ni-Cu-Ni, Black Nickel, Zn, Sn, Au, Ag, Black Epoxy, etc.
Quality control:  ROSE, ROHS ISO90001, ISO/TS16949,ISO14001,OHSAS18001
Features &Advantage the most powerful permanent magnet, offers a great return for cost & performance,
have the highest field/surface strength(Br),
high coercively(Hc), can be easily formed into various shapes and sizes.
Be reactive with moisture and oxygen,usualy supplied by plating (Nickel, Zinc, Passivatation, Epoxy etc.).

B. NdFeB  Magnetic Parameter table
N35-N54; N35M-N52M; N33H-N50H, N30SH-N50SH; N30UH-N45UH,
N28EH-N40EH,N28AH-N35AH,N30SH-T-N45SH-T,N30UH-T-N42UH-T
  CGS Unit   SI Unit
Grade Remanence
Br,  KGS		 Coercive Force    HcB,  KOe Intrinsic Coercivity
HcJ, kOe		 Max Energy Magnetic
(BH)max,  MGsOe		 Remanence Br,  T Coercive Force
     HcB,  kA/m		 Intrinsic Coercivity HcJ,  kA/m Max Energy Magnetic  (BH)max, kJ/m3
N35 11.7  - 12.2  ≥11.0 ≥12.0 33 - 36 1.17 - 1.22  ≥876 ≥955 263  - 287
N38 12.2  - 12.6  ≥11.0 ≥12.0 36 - 39 1.22 - 1.26  ≥876 ≥955 287  - 310
N40 12.5  - 12.9  ≥11.0 ≥12.0 38 - 41 1.25 - 1.29  ≥876 ≥955 302  - 326
N42 12.9  - 13.3  ≥11.0 ≥12.0 40 - 43 1.29 - 1.33  ≥876 ≥955 318  - 342
N45 13.3  - 13.7  ≥11.0 ≥12.0 43 - 46 1.33 - 1.37  ≥876 ≥955 342  - 366
N48 13.6  - 14.1  ≥11.0 ≥12.0 46 - 49 1.36 - 1.41  ≥876 ≥955 366  - 390
N50 14.0  - 14.4  ≥11.0 ≥12.0 48 - 51 1.4 - 1.44  ≥876 ≥955 382  - 406
N52 14.3  - 14.7  ≥11.0 ≥11.0 49 - 53 1.43 - 1.47  ≥835 ≥955 390  - 422
N54 14.7  - 15.0  ≥10.4 ≥11.0 52 - 55 1.47 - 1.50  ≥835 ≥875 414  - 438
N35M 11.7  - 12.2  ≥11.2 ≥14.0 33 - 36 1.17 - 1.22  ≥892 ≥1114 263 - 287
N38M 12.2  - 12.6  ≥11.4 ≥14.0 36 - 39 1.22 - 1.26  ≥907 ≥1114 287 - 310
N40M 12.5  - 12.9  ≥11.4 ≥14.0 38 - 41 1.25 - 1.29  ≥907 ≥1114 302 - 326
 N42M  12.9  - 13.3  ≥11.4 ≥14.0 40 - 43 1.29 - 1.33  ≥907 ≥1114 318 - 342
N45M 13.3  - 13.7  ≥11.4 ≥14.0 43 - 46 1.33 - 1.37  ≥907 ≥1114 342 - 366
N48M 13.6  - 14.1  ≥11.4 ≥14.0 46 - 49 1.36 - 1.41  ≥907 ≥1114 366 - 390
N50M 14.0  - 14.4  ≥11.4 ≥14.0 48 - 51 1.4 - 1.44  ≥907 ≥1114 382 - 406
N52M 14.3  - 14.8  ≥11.4 ≥14.0 50 - 53 1.43 - 1.48  ≥907 ≥1114 398 - 422
N33H 11.4  - 11.8  ≥10.3 ≥17.0 31 - 34 1.14 - 1.18  ≥820 ≥1353 247 - 271
N35H 11.7  - 12.2  ≥10.8 ≥17.0 33 - 36 1.17 - 1.22  ≥860 ≥1353 263 - 287
N38H 12.2  - 12.6  ≥11.4 ≥17.0 36 - 39 1.22 - 1.26  ≥907 ≥1353 287 -

Description

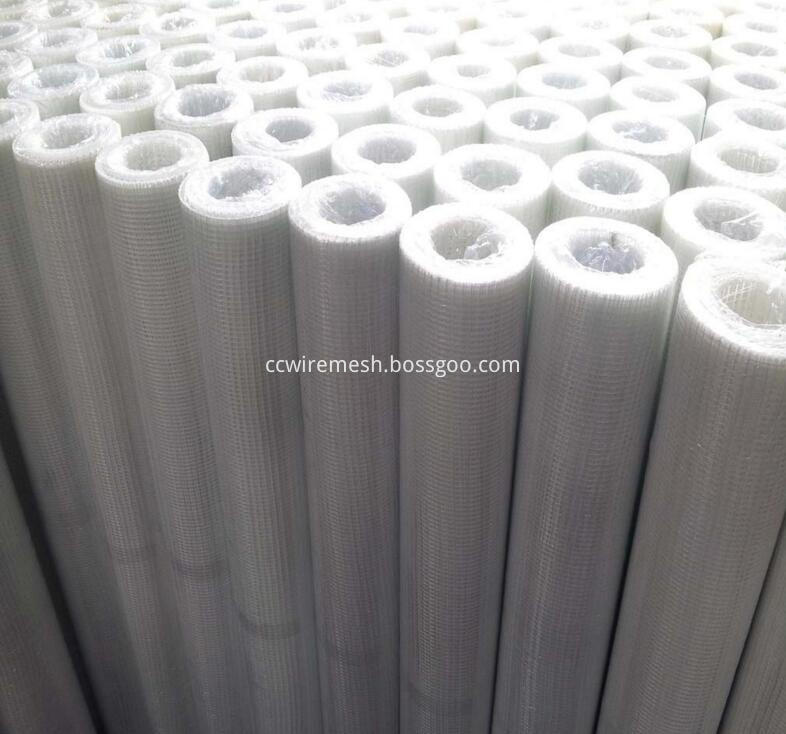

Non-metal Mesh

Material

100%virgin HDPE;0.3% UV added

Net Weight

8-120G/M2

Mesh hole

15*15mm;20*20mm;25*25mm;30*30mm

Colour

blue;yellow;green;red(as per required)

Width

5-15M(as per required)

Roll Length

1-50M;1-100M;1-200M (as per required)

 Type

Wrap knitted

 Delivery Time

 within 20 days after the order of 20fcl'

Export market

 Japan;Italy;Germany;Singapore;France;New Zealand;Ameria;Europe

 U.V.

As per required

 M.0.Q.

2T

 Terms of Payment

 T/T;L/C

 Supplying capacity

60T/MONTH

 Packing

1.one roll packed with one strong PP bag with one color label
2.one piece packed with one strong PP bag with one color label;

several pieces put in a carton

non-metal mesh



Non-metal Mesh

Wind proof Flexible Net,Nylon Anti-Bird Nets,Grape Bird-Proof Nets,Anti Wind Flexible Nets
